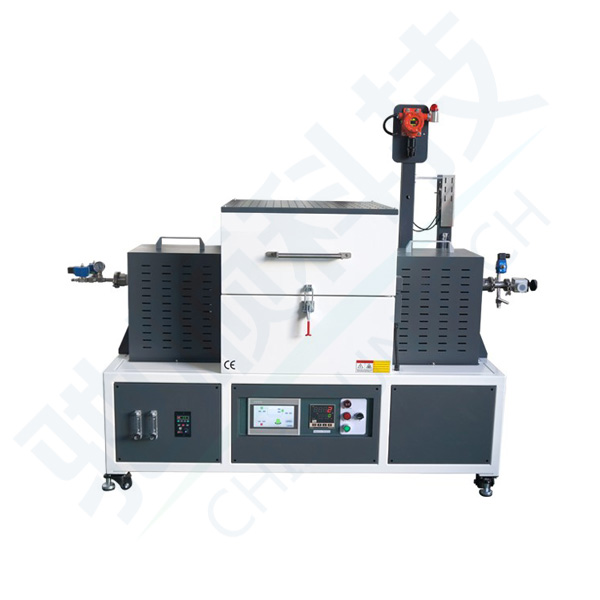

TFGX1200 hydrogen tube furnace The processing tube is made of high-quality Ni-based superalloy which never cracks and breaks at flowing Hydrogen gas. One 3M hydrogen detector is included which will shut down the Hydrogen gas generator and gas inlet valve immediately once detecting hydrogen gas leaking.
Furnace shell
The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
Horizontal use mode, upper opening structure, easy to operate
Refractory material
Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption
Heating system
1、High-quality HRE spiral resistance wire
heating element is safely and firmly embedded on the inner surface of the
furnace, thermal radiation heating in the furnace cavity, which is
energy-saving and efficient, long service life.
2、Ring heating by resistance wire to achieve good uniformity in the furnace.
Temperature Control Panel
1、Advanced controllers that meet complex
process requirements.
2、Programmable 30 program segments to realize automatic curve temperature
control.
3、Over temperature and fault alarm, automatic safety protection.
Rotary System
1、The furnace tube adopts a gear transmission
electric drive structure to rotate 360°, 12-20 rpm rotating speed, and the
material is heated evenly in the furnace tube.
2、The furnace body can be tilted by electric drive, the tilt angle can be
adjusted, and the material can enter and exit more smoothly.
3、With 304 stainless steel sealing flange, to obtain vacuum or atmosphere
environment in the furnace tube.
4、High-quality quartz tubes, metal or alumina ceramic tubes can also be
selected to adapt different working conditions.
|
Model |
TFGX-60-12 |
TFGX-100-12 |
TFGX-150-12 |
TFGX-200-12 |
|
Reactor Quartz Tube |
Φ60×1200mm |
Φ100×1200mm |
Φ150×1500mm |
Φ200×1500mm |
|
Heating Zone Length |
440mm |
440mm |
600mm |
600mm |
|
Max Temp |
1200℃ |
|||
|
Continue Temp |
1100℃ |
|||
|
Heating Element |
High quality Alloy Resistance Wire（HRE） |
|||
|
Chamber Material |
Polycrystalline inorganic alumina ceramic fiber materials |
|||
|
Temp Precision |
±1℃ |
|||
|
Thermocouple |
B-type national standard platinum rhodium thermocouple |
|||
|
Temp Controller |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling |
|||
|
Heating Rate |
1-20℃/min free adjustment |
|||
|
Furnace Structure |
Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation |
|||
|
Equipment Protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
|||
|
Safety Protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
|||
|
Furnace Shell |
High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder |
|||
|
The standard configuration |
1. 1 furnace body 2. 1 temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange |
|||
